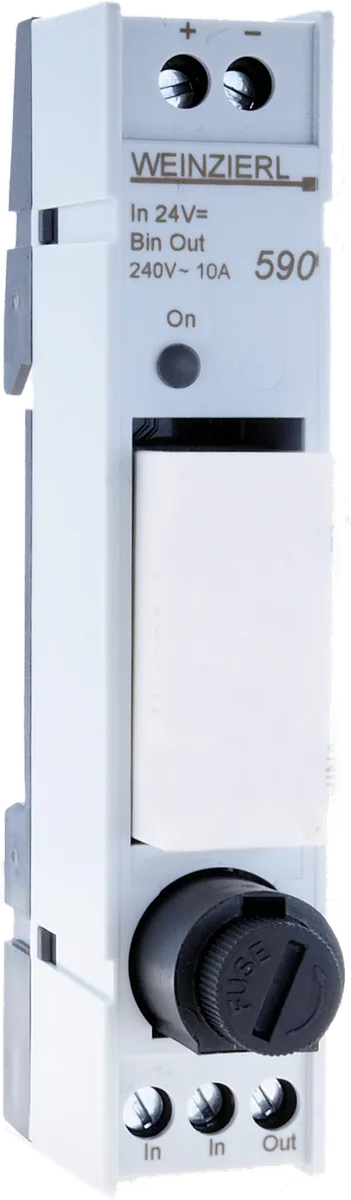

Multi IO Extension Switch 590
型番ベース: Multi IO Extension Switch 590
Coupling relay for Multi IO (for operation with art. no. 5267, 5238) The relay extension serves as a power-saving alternative for commercially available coupling relays for operation with art. no. 5267, 5238. Bistable relay internal, external control like monostable relay.
| 特徴 | Reduction of the holding current by up to 95 % / Input (signal) 24 V⎓ / Output 230 V∿ / 10 A / Pluggable relay 250 V∿ / 16 A, bistable / Integrated fuse (5 x 20 mm) to protect high-value devices / Connections: Screw terminals for IO / For DIN rail, width 1 unit (18 mm) |
|---|---|
| Art. no. | 5321 |
| メーカー | Weinzierl |
価格・納期
Multi IO Extension Switch 590 の価格と納期は、数量と構成によって変わるためお見積りでご案内しています。下のボタンから、型番を入れた状態でお問い合わせいただけます。
Multi IO Extension Switch 590 の見積を依頼する関連製品
KNX IO 410.1 secure: for 12..230 V⎓∿アクチュエータKNX IO 411.1 secure: for potential dry contactsアクチュエータKNX IO 510.1 secureアクチュエータKNX IO 511.1 secureアクチュエータKNX IO 520 (1J2l)アクチュエータKNX IO 520.1 secureアクチュエータ
型番一覧（1 種）
| 型番 | 仕様 |
|---|---|
| 5321 | Art. no. 5321 |
