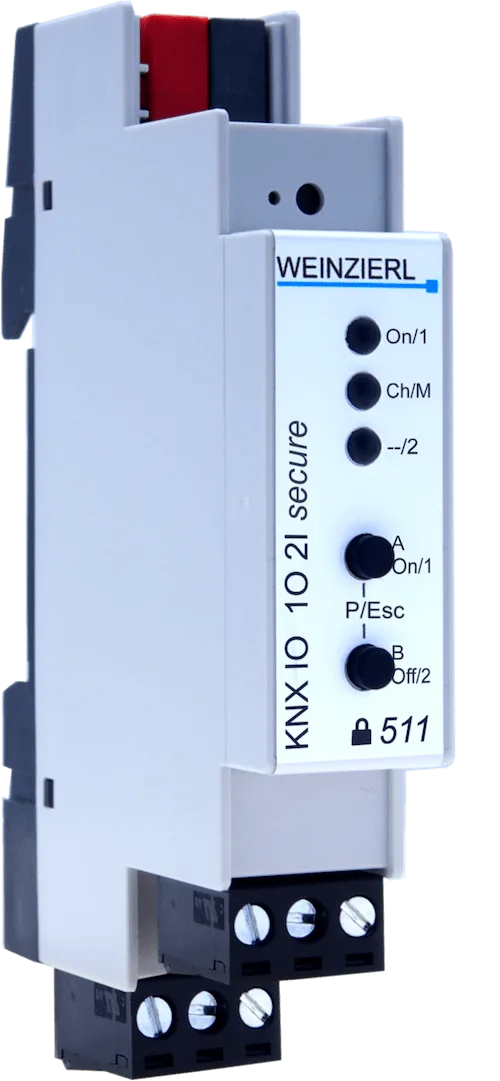

KNX IO 511.1 secure
型番ベース: KNX IO 511.1 secure
Switch actuator 1-fold and binary input 2-fold Compact switch actuator with one bistable output and 2 binary inputs. Suitable as KNX compatible replacement for conventional impulse switches (output: light, input 1: pushbutton, input 2: L for zero-crossing detection).
| 特徴 | 1 output relay 230 V∿, 16 A, bistable / Switching, staircase function, heating actuator / 2 inputs 12..230 V⎓∿, galvanically isolated / Switching, dimming, shutters, scenes, pulse counter / Zero-crossing detection via input channel / Integrated logic and timer functions / Support of KNX Security / Connections: KNX, pluggable screw terminals for IO / For DIN rail, width 1 unit (18 mm) |
|---|---|
| Art. no. | 5327 |
| メーカー | Weinzierl |
価格・納期
KNX IO 511.1 secure の価格と納期は、数量と構成によって変わるためお見積りでご案内しています。下のボタンから、型番を入れた状態でお問い合わせいただけます。
KNX IO 511.1 secure の見積を依頼する関連製品
KNX IO 410.1 secure: for 12..230 V⎓∿アクチュエータKNX IO 411.1 secure: for potential dry contactsアクチュエータKNX IO 510.1 secureアクチュエータKNX IO 520 (1J2l)アクチュエータKNX IO 520.1 secureアクチュエータKNX IO 530.1 secureアクチュエータ
型番一覧（1 種）
| 型番 | 仕様 |
|---|---|
| 5327 | Art. no. 5327 |
