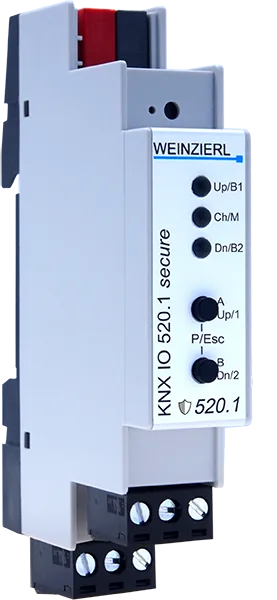

KNX IO 520.1 secure
型番ベース: KNX IO 520.1 secure
Shutter actuator 1-fold and binary input 2-fold with KNX Security Compact blind/shutter actuator with two additional binary inputs. Numerous functions including position drive via time calculation.
| 特徴 | 1 shutter output, 230 V∿, 8 A / Drive directions electro-mechanically locked against each other / For blinds, shutters or window drives / Approach position via time calculation / 2 inputs 12..230 V⎓∿, galvanically isolated / Integrated logic and timer functions / Direct operation with the ETS without download / Support of KNX Security / Connections: KNX, plugable screw terminals for IO / For DIN rail, width 1 unit (18 mm) |
|---|---|
| Art. no. | 5515 |
| メーカー | Weinzierl |
価格・納期
KNX IO 520.1 secure の価格と納期は、数量と構成によって変わるためお見積りでご案内しています。下のボタンから、型番を入れた状態でお問い合わせいただけます。
KNX IO 520.1 secure の見積を依頼する関連製品
KNX IO 410.1 secure: for 12..230 V⎓∿アクチュエータKNX IO 411.1 secure: for potential dry contactsアクチュエータKNX IO 510.1 secureアクチュエータKNX IO 511.1 secureアクチュエータKNX IO 520 (1J2l)アクチュエータKNX IO 530.1 secureアクチュエータ
型番一覧（1 種）
| 型番 | 仕様 |
|---|---|
| 5515 | Art. no. 5515 |
