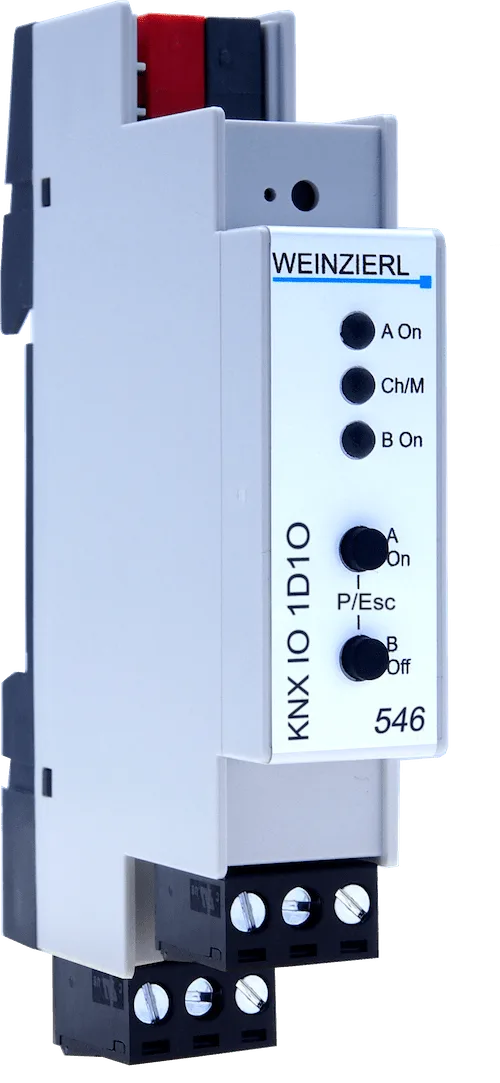

KNX IO 546.1 secure
型番ベース: KNX IO 546.1 secure
1..10 V dimming actuator 1-fold and switching actuator 1-fold Compact dimming/switching actuator with one dimming channel for the connection of active electronic ballasts (ECG) with a 0/1..10 V⎓ interface and one relay output. The relay output can be used for switching the load.
| 特徴 | Output for 0/1..10 V⎓ / max. 50 mA / Scenes, sequencer, staircase function, adjustable dimming curve / Relay 250 V∿ / 10 A, bistable / Integrated logic and timer functions / Also compatible with 0..10 V⎓ actuators (valves) / Connections: KNX, pluggable screw terminals for IO / For DIN rail, width 1 unit (18 mm) / Support of KNX Securtity |
|---|---|
| Art. no. | 5337 |
| メーカー | Weinzierl |
価格・納期
KNX IO 546.1 secure の価格と納期は、数量と構成によって変わるためお見積りでご案内しています。下のボタンから、型番を入れた状態でお問い合わせいただけます。
KNX IO 546.1 secure の見積を依頼する関連製品
KNX IO 410.1 secure: for 12..230 V⎓∿アクチュエータKNX IO 411.1 secure: for potential dry contactsアクチュエータKNX IO 510.1 secureアクチュエータKNX IO 511.1 secureアクチュエータKNX IO 520 (1J2l)アクチュエータKNX IO 520.1 secureアクチュエータ
型番一覧（1 種）
| 型番 | 仕様 |
|---|---|
| 5337 | Art. no. 5337 |
