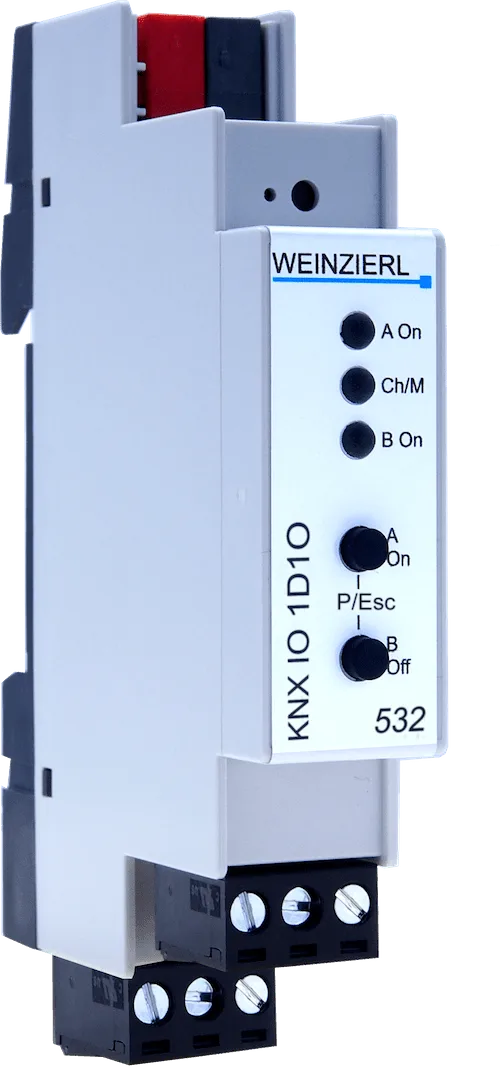

KNX IO 532.1 secure
型番ベース: KNX IO 532.1 secure
LED dimming actuator 1-fold and switching actuator 1-fold with KNX Security Compact dimming actuator with one PWM output for dimming LEDs and one relay output. The dimming actuator can be used e.g. for LED panels/strips. The relay output can be used to switch the LED power supply.
| 特徴 | Output for 12..24 V⎓ / 6A, PWM dimming actuator / Scenes, sequencer, staircase function, adjustable dimming curve / Relay 250 V∿ / 10 A, bistable / Integrated logic and timer functions / Direct operation with the ETS without download / Support of KNX Security / Connections: KNX, plugable screw terminals |
|---|---|
| Art. no. | 5503 |
| メーカー | Weinzierl |
関連製品
KNX IO 410.1 secure: for 12..230 V⎓∿アクチュエータKNX IO 411.1 secure: for potential dry contactsアクチュエータKNX IO 510.1 secureアクチュエータKNX IO 511.1 secureアクチュエータKNX IO 520 (1J2l)アクチュエータKNX IO 520.1 secureアクチュエータ
型番一覧（1 種）
| 型番 | 仕様 |
|---|---|
| 5503 | Art. no. 5503 |
