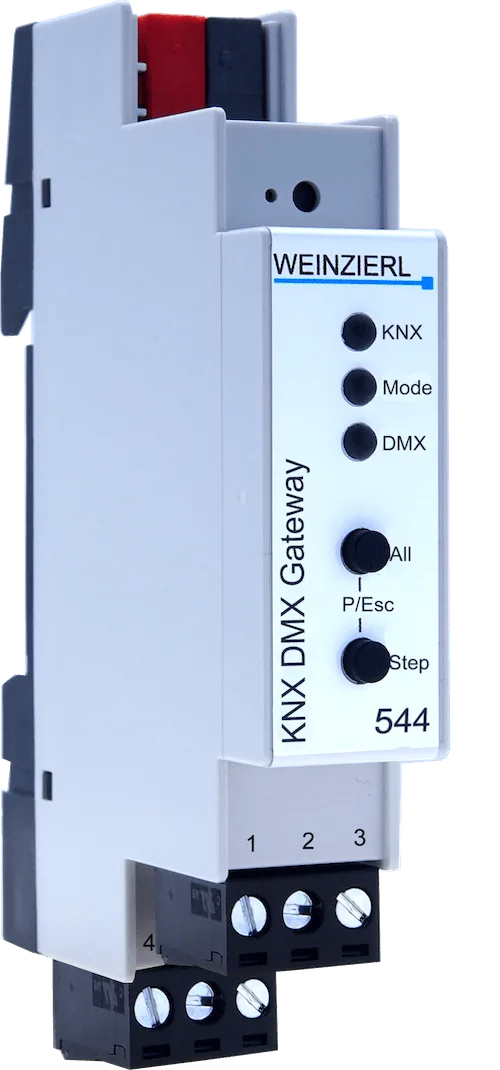

KNX DMX Gateway 544
型番ベース: KNX DMX Gateway 544
KNX gateway to DMX512 Compact gateway between KNX and DMX512 with up to 64 freely configurable channels. Master mode (KNX to DMX luminaires) and slave mode (DMX control to KNX actuators).
| 特徴 | Assignment between KNX and DMX512 via ETS® parameters / Master: up to 64 individual dimming channels or up to 8 RGB/RGBW channels / Slave: up to 64 DMX addresses evaluated individually / 4 sequencers for complex time sequences / Status display via 3 LEDs / Connections: KNX, pluggable screw terminals for DMX512, power supply / For DIN rail, width 1 unit (18 mm) |
|---|---|
| Art. no. | 5358 |
| メーカー | Weinzierl |
型番一覧（1 種）
| 型番 | 仕様 |
|---|---|
| 5358 | Art. no. 5358 |
